LP-DED Solutions

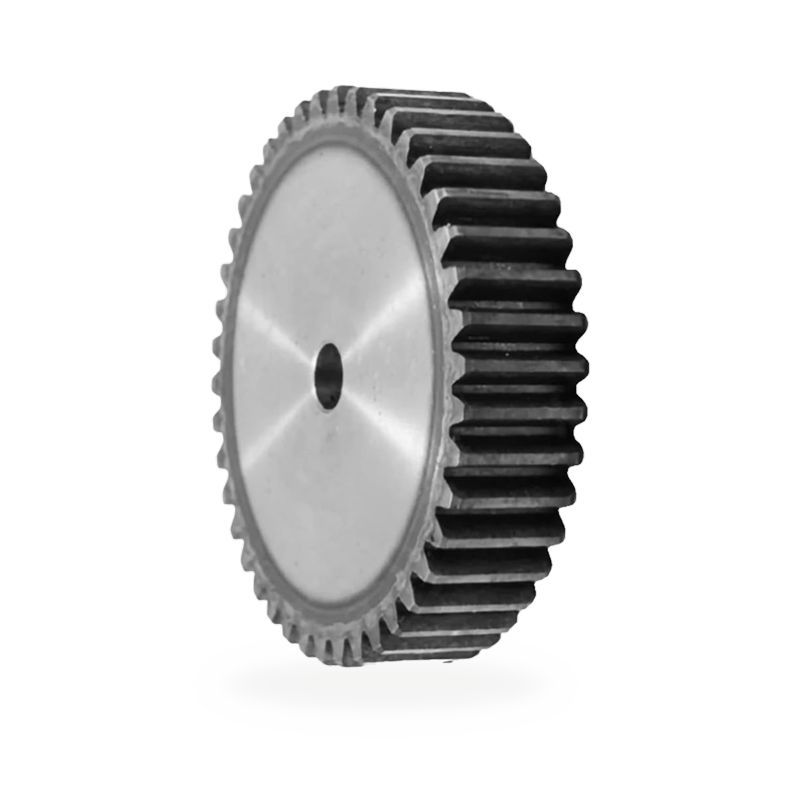

Gear

Goal: Repair of Gear

Material (powder): DIEVAR, 1.5 kg/h

Part material: F158

Process: Strategy done with 3 axis machine (no need 3+2 axis or 5 axis). Automated the repair process of complex surfaces done with proprietary know how: process (without close loop control), nozzle and Azala Software.

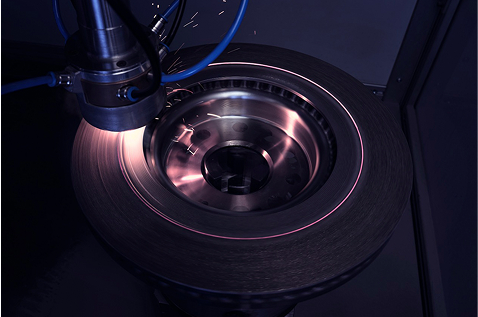

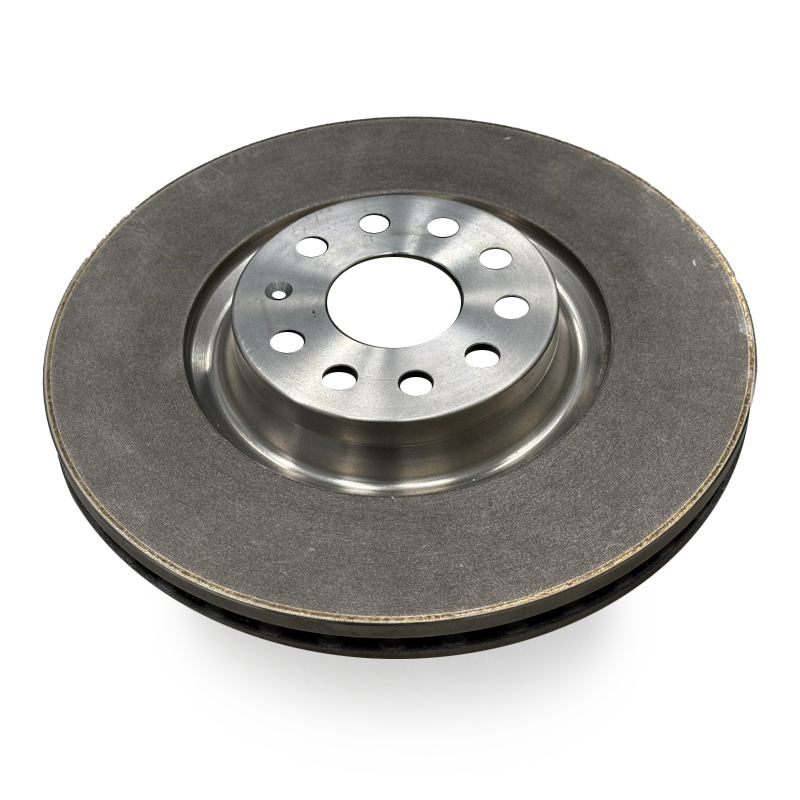

Brake Discs

Goal: Industrialization of BD coating for Euro 7, Low Emissions

Material (powder): 430L, 5.5kg/h; 430L+TiC/FeCr, 8kg/h.

Part material: Gray cast iron

Process: Industrialization of EHLA process. Layers thickness between 100 - 300 microns, without HAZ,. Done with proprietary know how and programmed with proprietary Azala software.

Process speed 90-270m/min.

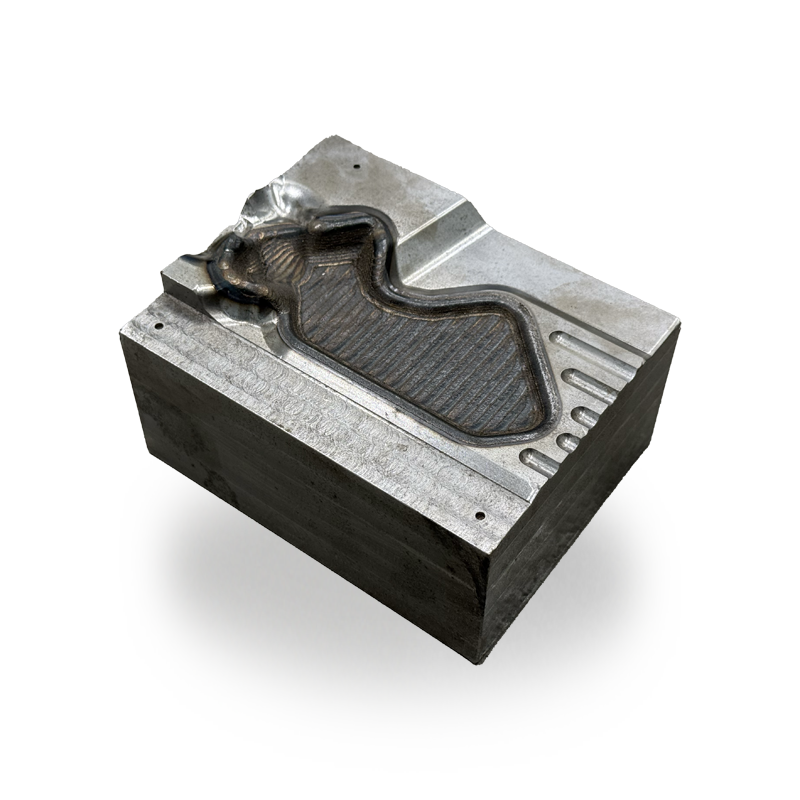

Forged Die

Goal: Reparation for improving cycle time between 5%-15%.

Material (powder): AISI316L, 1.2kg/h

Part material: F114

Process: Strategy done with 3 axis machine (no need 3+2axis or 5 axis). Automated the repair process of complex surfaces done with proprietary know how: process (without close loop control), nozzle and Azala software.

DED Process speed 1m/min.

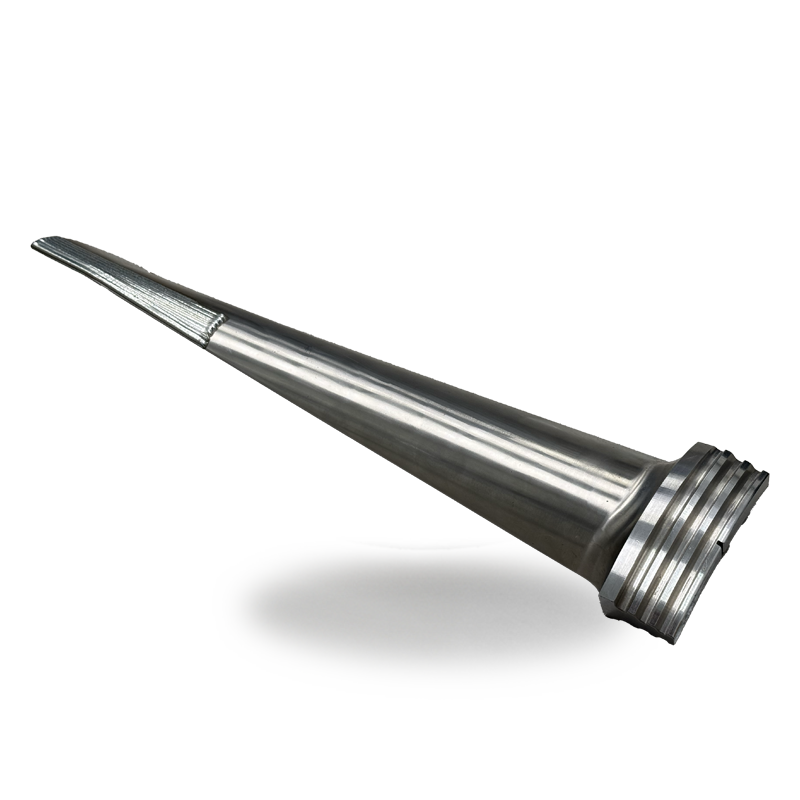

Turbine Blade

Goal: Erosion and corrosion protection.

Material (powder): Stellite 6, 0.3kg/h

Part material: 17-4PH

Process: Leading edge coating of three layers. Each layer 300microns height. DED Process speed 0.5m/min. Done with proprietary know how and programmed with proprietary Azala software.

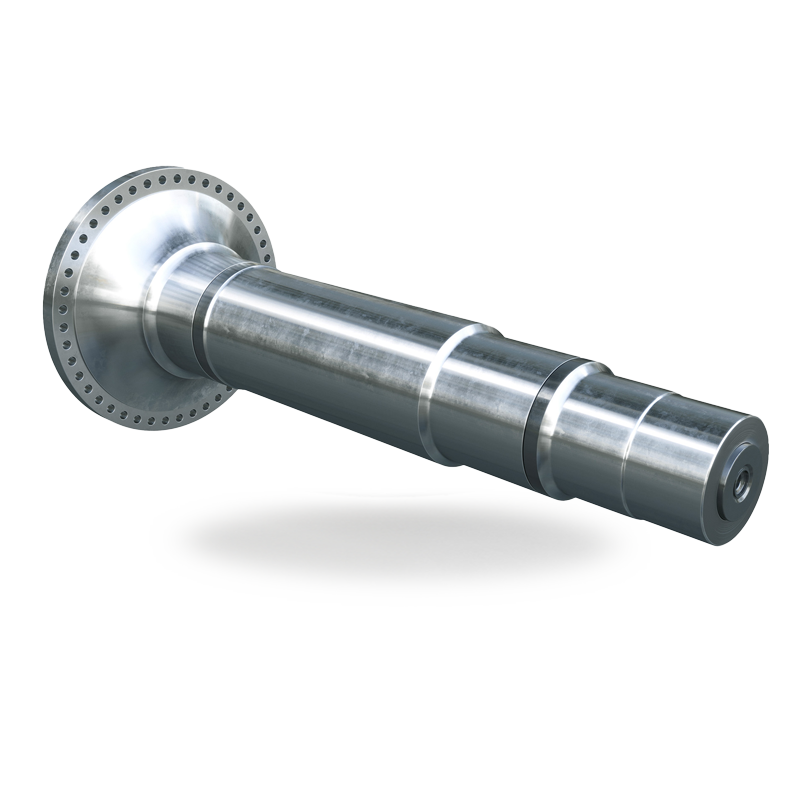

Wind power main shaft

Goal: Reparation of turbine shafts, validated with ISO 15614-7

Material (powder): Inconel 625, 1.5kg/h

Part material: F125

Process: validated process with ISO 15614-7: achieved hardness in the Heat Affected Zone <380HV in the surface of the part material.

Done with proprietary know how: process (without close loop control), nozzle and Azala software. 12h non stop process.

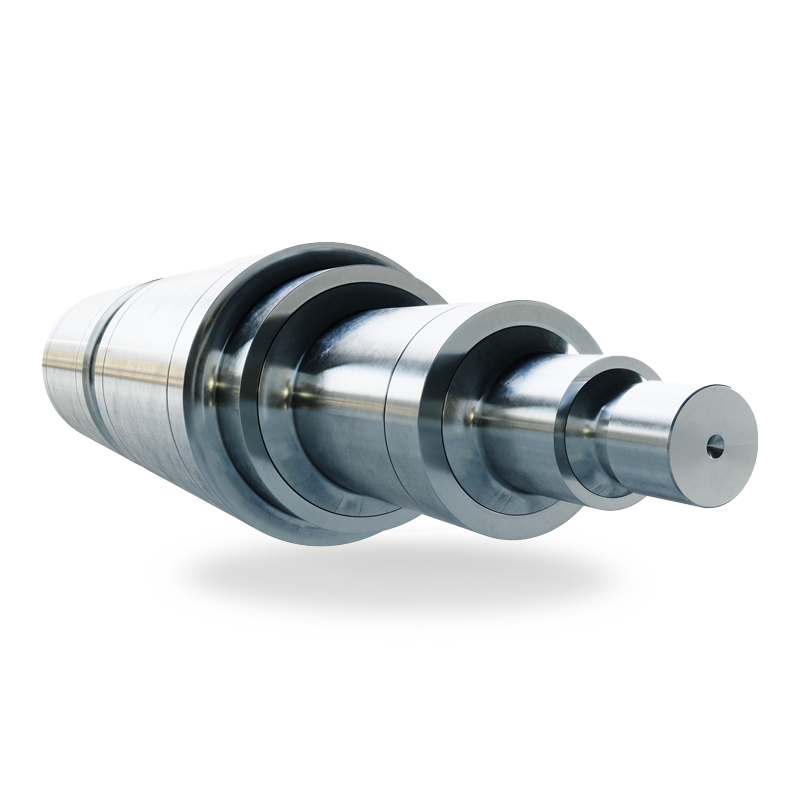

Rolling Mill Roll

Goal: Reparation of rolling shafts

Material (powder): AISI 420S, 1.5kg/h

Part material: F127

Process: Reparation of some zones of the shafts. DED layer thickness can be between 500-1400microns and DED process speed can be 1-3m/min.

Done with proprietary know how and programmed with proprietary Azala software.

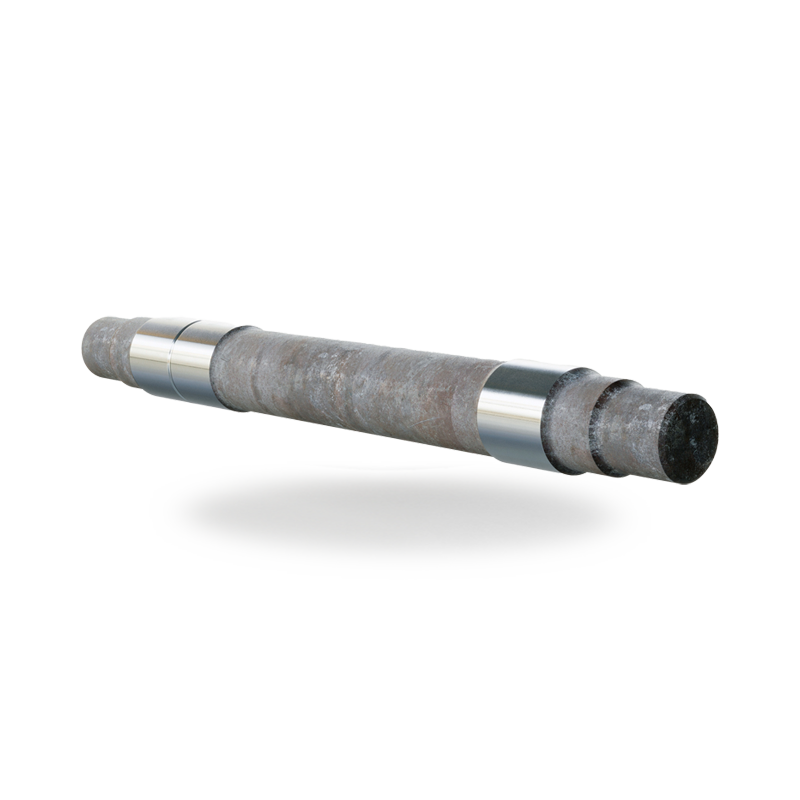

Railways Axle

Goal: Certified process to repair railway shafts

Material (powder): AISI 420S, 1.5kg/h

Part material: F125

Process: Reparation of some zones of the shafts. DED layer thickness can be between 500-1400microns and DED process speed can be 1-3m/min.

Done with proprietary know how and programmed with proprietary Azala software.

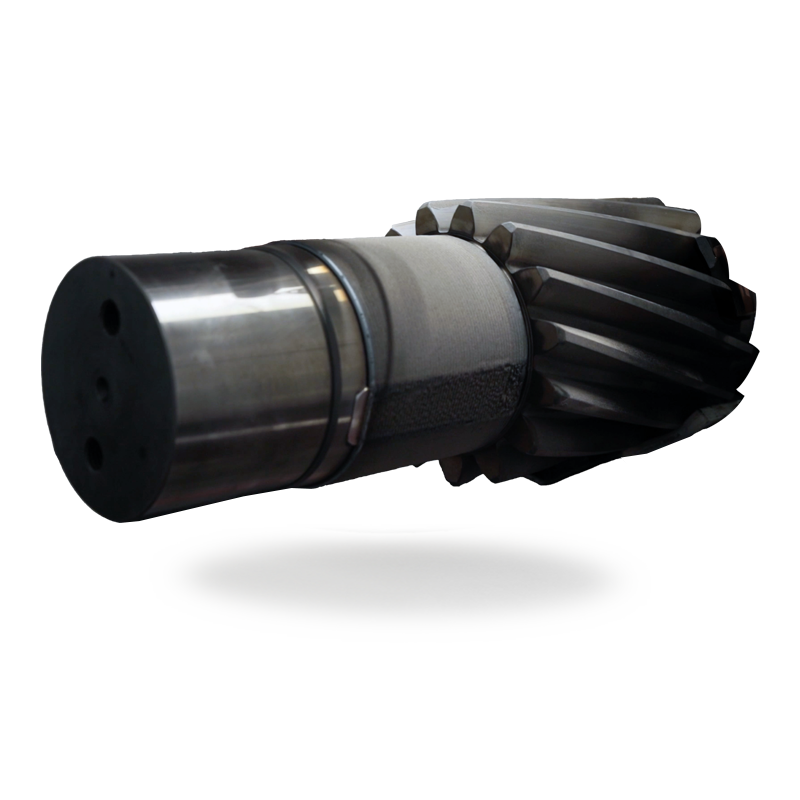

Axles

Goal: Reparation of shafts from different sectors

Material (powder): AISI 316L, 1.2kg/h

Part material: F125

Process: Reparation of some zones of the shafts. Layer thickness can be between 500-1400microns and DED process speed can be 1-3m/min.

Done with proprietary know how and programmed with proprietary Azala software.

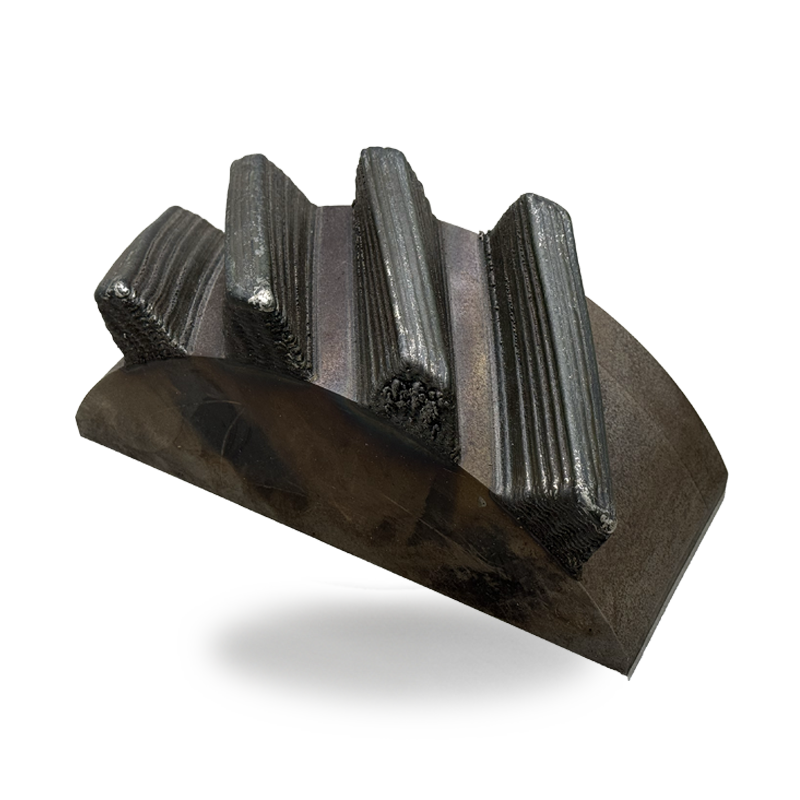

Helicoidal Gear

Goal: Reparation of gears.

Material (powder): AISI 316L, 1.2kg/h

Part material: 1.2311

Process: Strategy done with 3 axis machine (no need 3+2axis or 5 axis). Automated the repair process of complex surfaces done with proprietary know how: process (without close loop control), nozzle and Azala software.

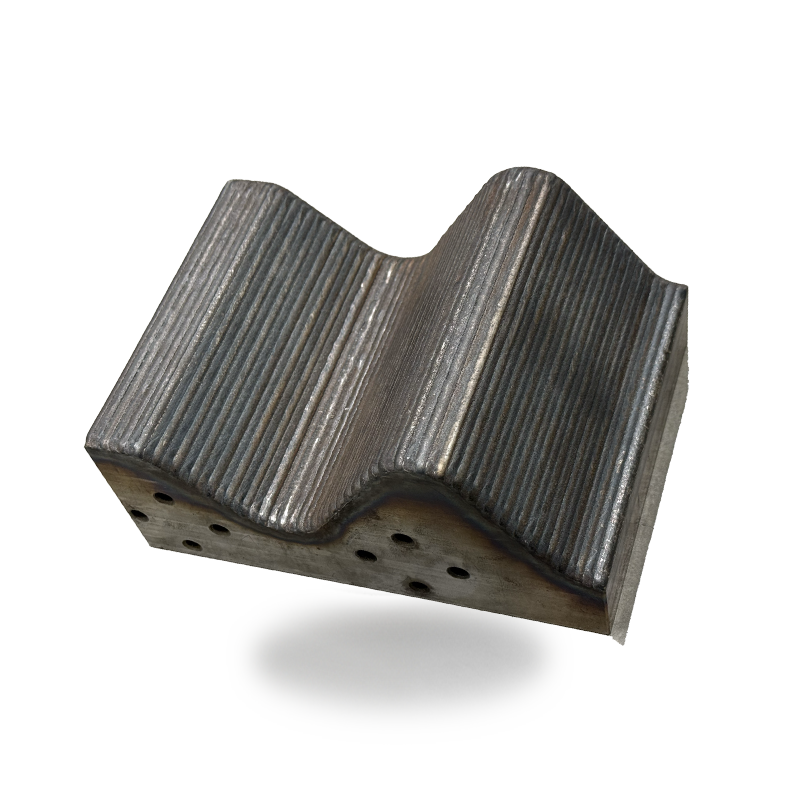

Hot Stamping Die

Goal: Impact protection, stamping cycles improvement between 15%-20%.

Material (powder): H13, 2.7kg/h

Part material: 1.2311

Process: Single layer of 3mm in height. Done with proprietary know how and programmed with proprietary Azala software.

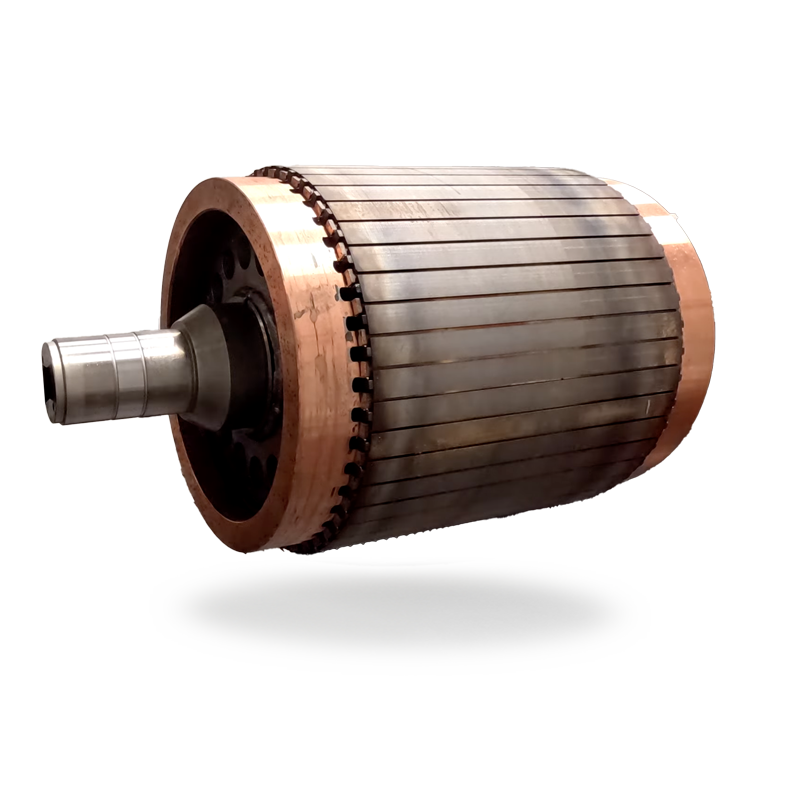

Rotor Shaft

Goal: Reparation of shafts from different sectors

Material (powder): AISI 316L, 1.2kg/h

Part material: F125

Process: Reparation of some zones of the shafts. Layer thickness can be between 500-1400microns and DED process speed can be 1-3m/min.

Done with proprietary know how and programmed with proprietary Azala software.

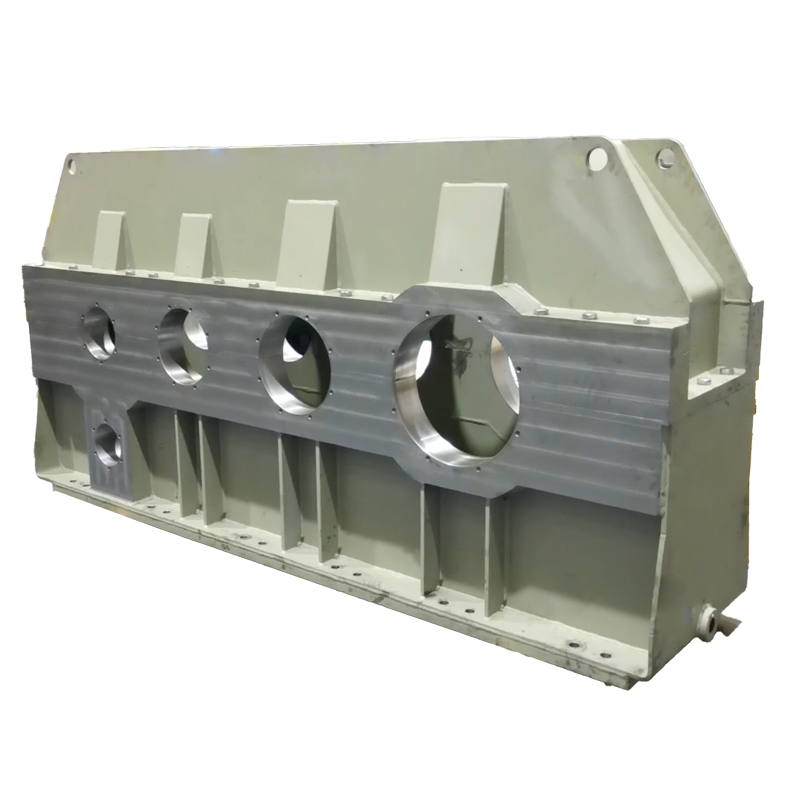

Gearbox Bearing Housing

Goal: Reparation of bearing housing zone

Material (powder): AISI 316L, 1.5kg/h

Part material: SJR355

Process: Reparation performed by tilting the nozzle head. Layer thickness is 1400microns and DED process speed can be 1m/min.

Done with proprietary know how and programmed with proprietary Azala software.

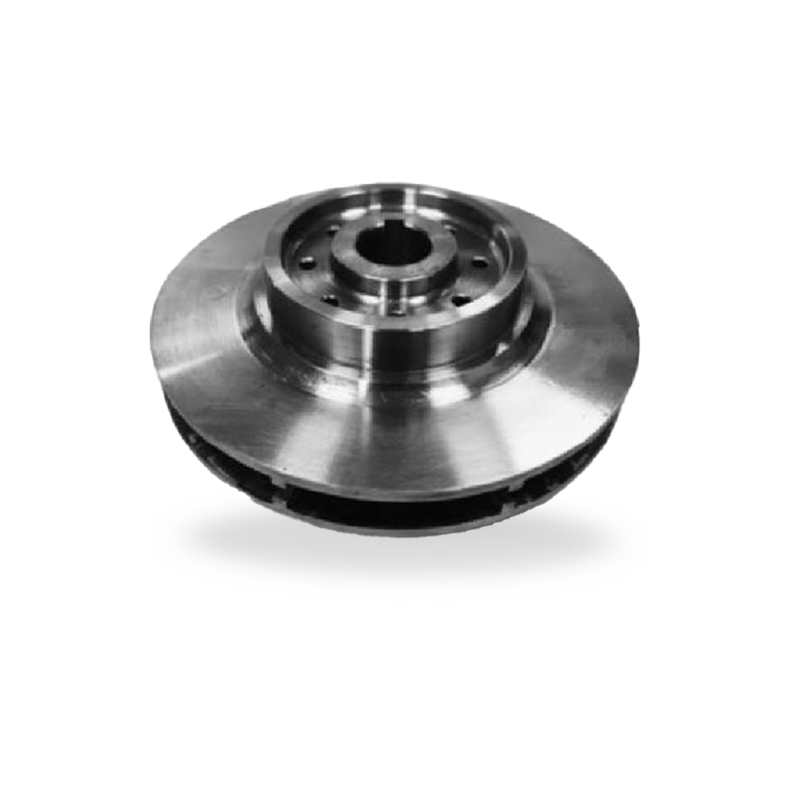

Impeller

Goal: Repair process of an external diameter

Material (powder): AISI 316L, 1.2kg/h

Part material: AISI 304

Process: Reparation performed by tilting the nozzle head. Layer thickness can be between 500-1400microns and DED process speed can be 1-3m/min.

Done with proprietary know how and programmed with proprietary Azala software.

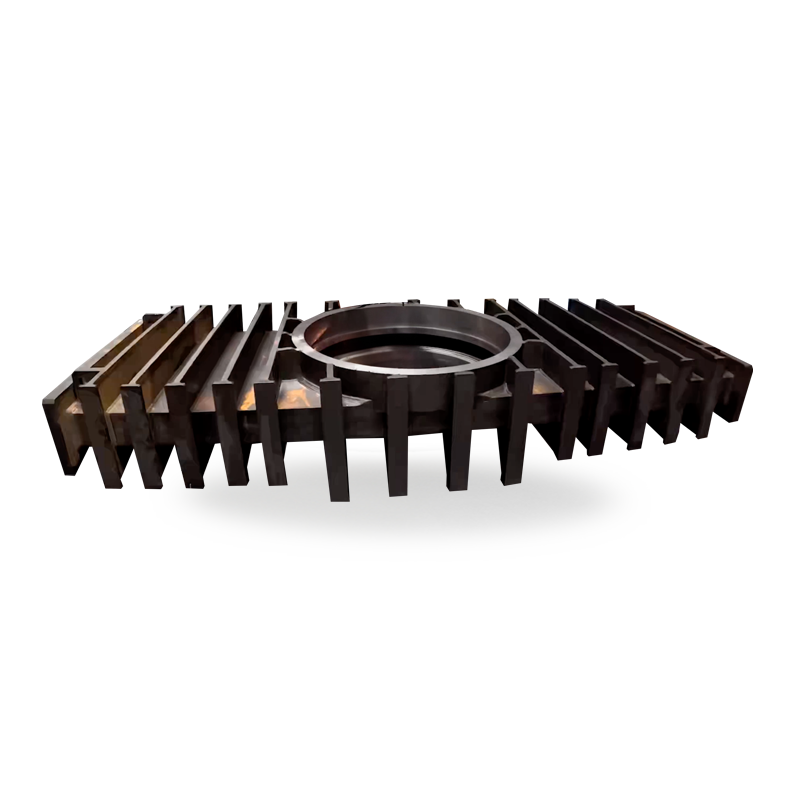

Cooler Valve Seat

Goal: Reparation of an internal diameter

Material (powder): Stellite 6

Part material: SJR355

Process: Reparation performed by tilting the nozzle head. Layer thickness can be between 500-1400microns and DED process speed can be 1-3m/min.

Done with proprietary know how and programmed with proprietary Azala software.

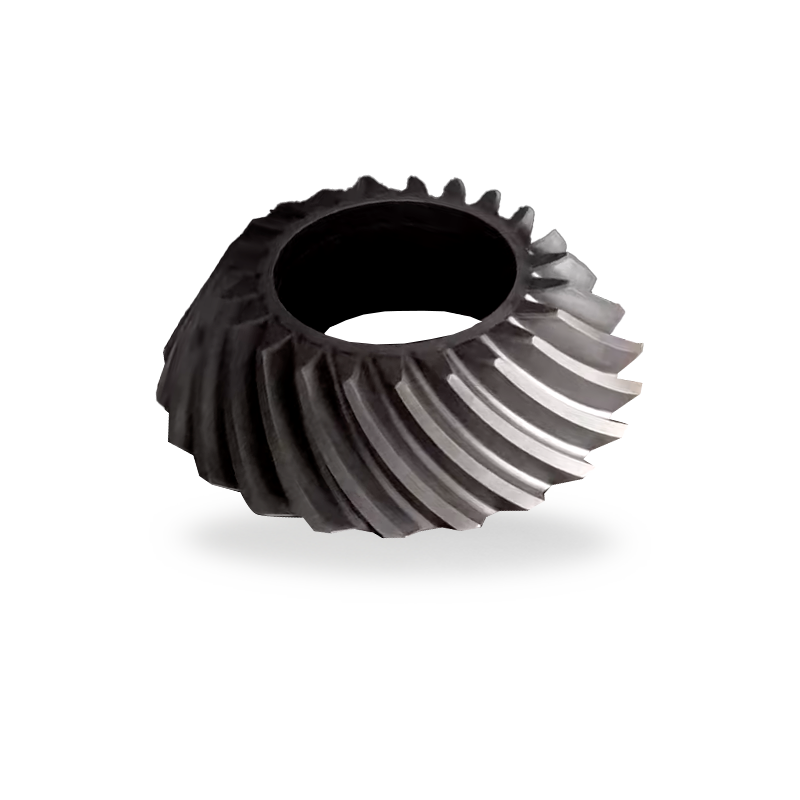

Conical Pinion

Goal: Repair process of an internal diameter

Material (powder): AISI 316L, 1.2kg/h

Part material: F158

Process: Reparation performed by tilting the nozzle head. Layer thickness can be between 500-1400microns and DED process speed can be 1-3m/min.

Done with proprietary know how and programmed with proprietary Azala software.

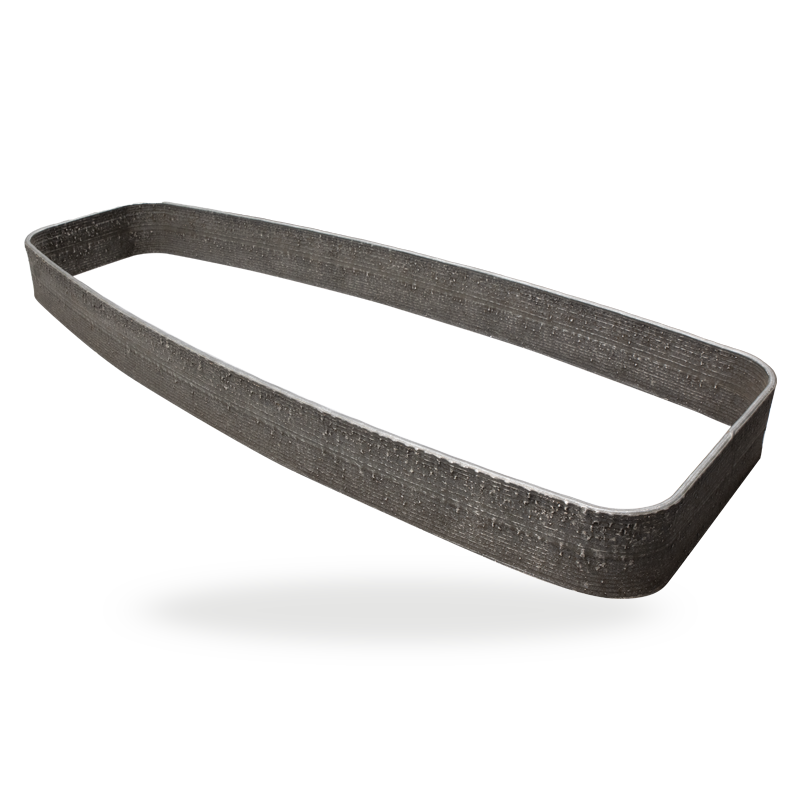

Aerospace Frame Structure

Goal: Free form geometry with some clads overlaped for aerospace applications

Material (powder): AISI 316L, 1.5kg/h

Part material: ST52

Process: Manufacture 53 layers of a freeform geometry done with proprietary know how: process (without close loop control), nozzle and Azala software.

6m per layer, 5h non stop process and 1m/min of process speed.

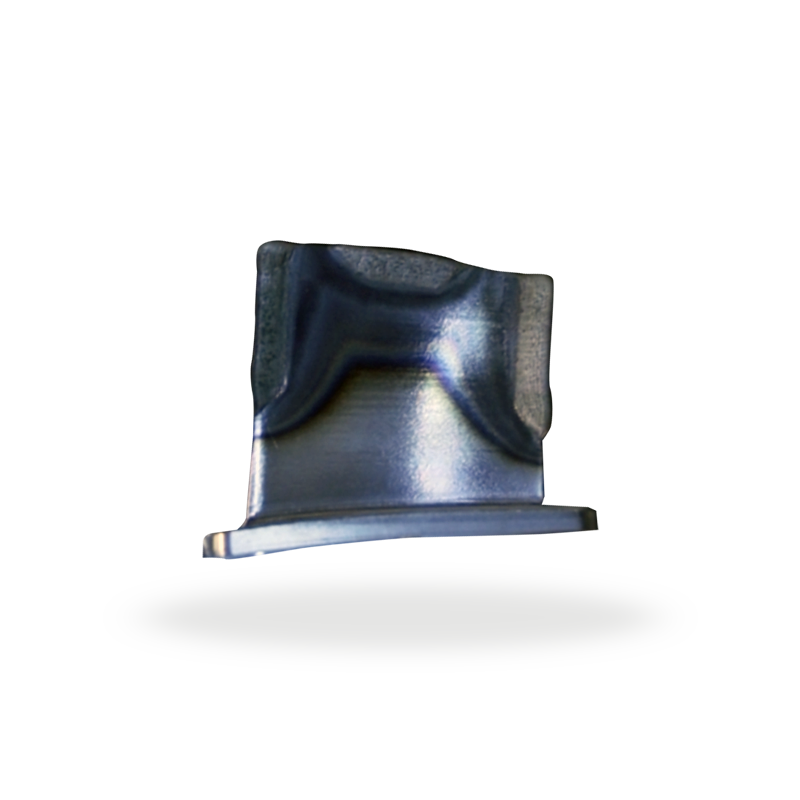

Blisk blades repair

Goal: Repair a blisk with a thickness <2mm, for aerospace applications

Material (powder): Inconel 718, 0.5kg/h

Part material: F114

Process: Manufacture 17 layers of a single wall done with proprietary know how: process (without close loop control), nozzle and Azala software.

Cicle time <2min each flanke; 1m/min of process speed.
